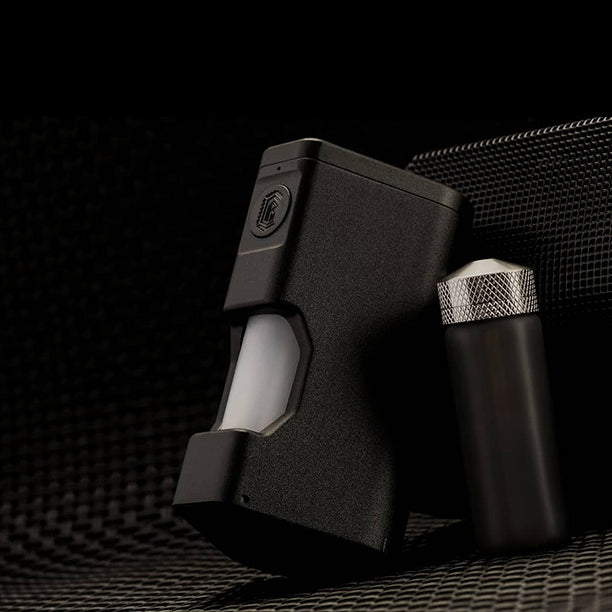

Squonk Mod By Reload Vapor USA
Ergonomic Shape and Feel; Modern, Sleek Look; Anodized Aluminum Construction; Engraved with Reload LOGO on the Firing Button and Body; An Easy Single-Button Control Face.
Product Features:
● Colored LED Light Indicator
Power On: press the fire button 5 times to turn on ( Blue light stays on for 1 second)
Power Off: press the fire button 5 times to turn off ( Red light stays on for 2 seconds )
Overvoltage Alert: Red light blinks 3 times
Short Circuit Alert: Red light blinks 3 times
Overtime Alert: Red light blinks 5 times (10 seconds cutoff)
Under-Voltage Alert: Red light blinks 5 times
Overheating Alert: Red light blinks 6 times
● Proprietary Chip
136W Maximum Output
Power Output Based on Current Battery State
3.3v to 4.2v Output Voltage
0.1 to 3 ohm Atomizer Range
● Bottom Feed Bottle
9ml Maximum Capacity Silicone Bottle
Knurled Stainless Steel Cap
● Spring-Loaded 510 Connector
Gold-plated top and Bottom contacts

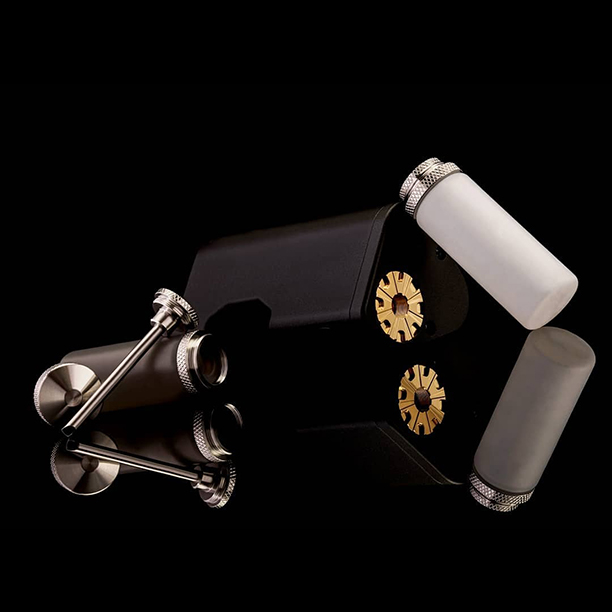

● Tool-less Battery Access Door
Dual 18650 Battery Parallel Configuration (Batteries are not included)
Slide and Lock Battery Door
Batteries should be installed with the (-) negative down
● Malfunction Protection/PCB Circuit Board:
Reverse Polarity Protection
Under-Voltage Protection
Over-Voltage Protection
High Resistance Protection
Overheating Protection
Short Circuit Protection
10-second cut-off Protection
Product Includes:
One Reload Squonk Mod with one clear Silicone Bottle
One Extra set of Black Silicon Bottle
User Manual
Warning: All reload products are intended for tobacco & ejuice use only. They are designed for advanced vapors only. Nicotine is highly addictive and may be dangerous to your health. Please keep out of reach of children and pets.
